TOOLS FOR BETTER, EASIER, FASTER AND COST EFFECTIVENESS

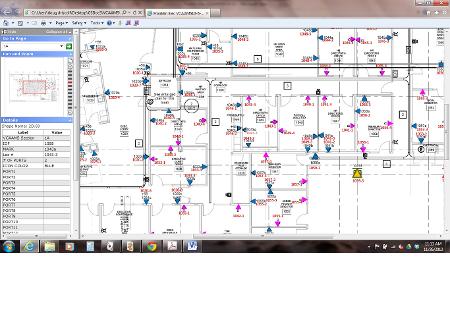

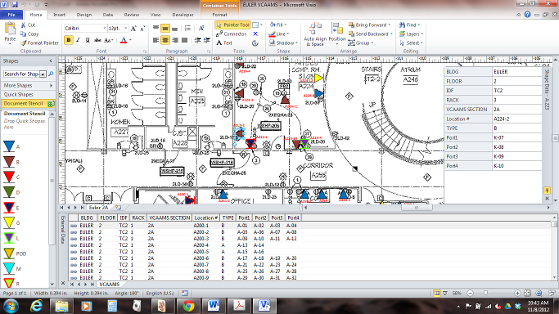

INTERACTIVE FLOOR PLAN CREATION

  • When all you have is paper prints
  • Creating integrated electronic files
  • Each Asset and information for that asset is shown on the same screen

IoT (INTERNET of THINGS

  • Can the current infrastructure handle the increased loads and processing requirements?
  • Planning for the futue is easier when you know what you have and where it is located!

DISCOVERY

  • Assist to locate all technology assets in existing legacy facilities
  • Define Labeling Schematic for existing Faceplates and racks.

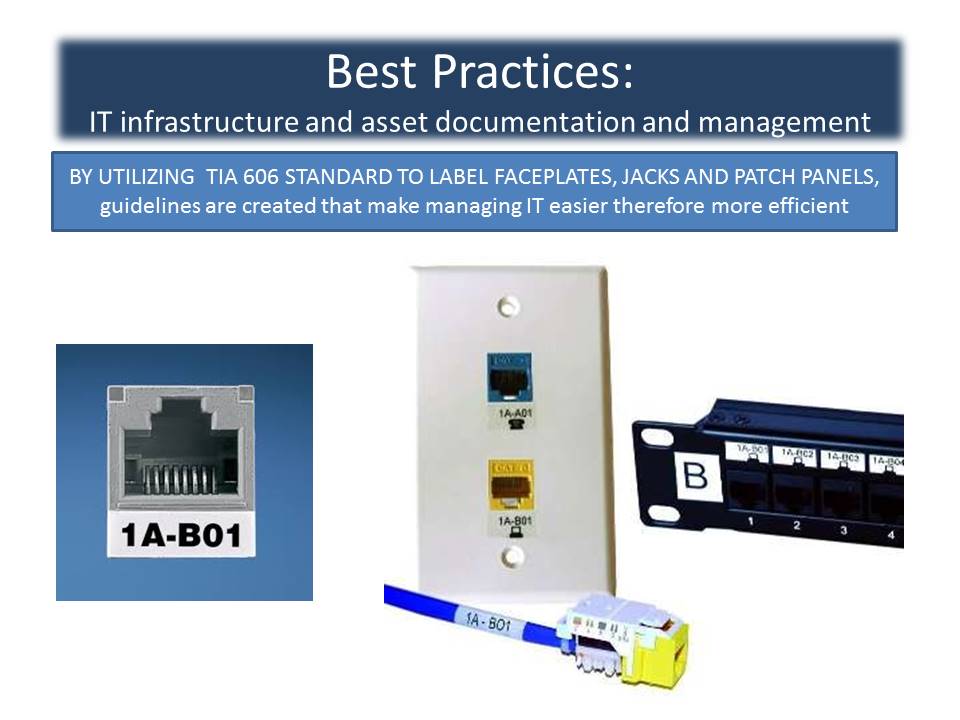

FACEPLATE RE-LABELING

  • Creates sustainable schema for existing legacy cabling.
  • A matrix of existing lebeling schemes and Standards based schemes for future deployments

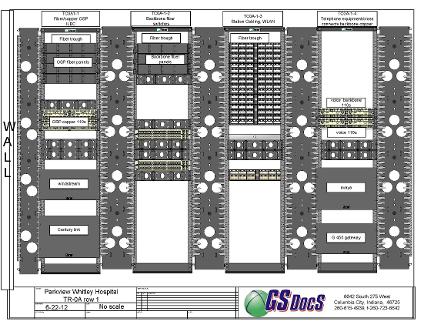

RACK ELEVATION DRAWING DETAILS

  • Create drawings of existing technology racks, enclosures and cabinets
  • Label each "asset" to clearly define its location.
  • matrix of exisitng and standards based labeling scheme

SWITCH PORT DISCOVERY

  • Locate each end of a patch cord
  • Electronic, modifiable files assists with troubleshooting and planning
  • Completes the "missing link" between network management and infrastructure cabling

RECERTIFICATION OF EXISTING CABLING

  • Verify and validate existing legacy cabling for better planning
  • Verify cabling is the proper transport for today's and tomorrows applications
  • 10g 40g, 100g, etc.

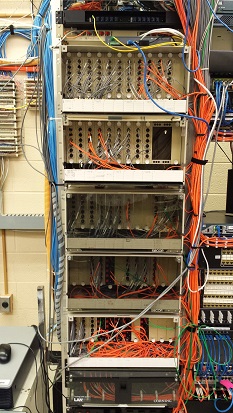

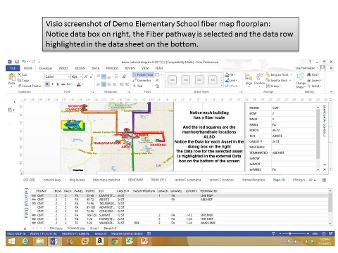

FIBER BACKBONE DISCOVERY AND LABELING

  • Find each end of each fiber strand
  • Label each end of fiber
  • verify existing fiber is the proper transport for today's and tomorrow's applications

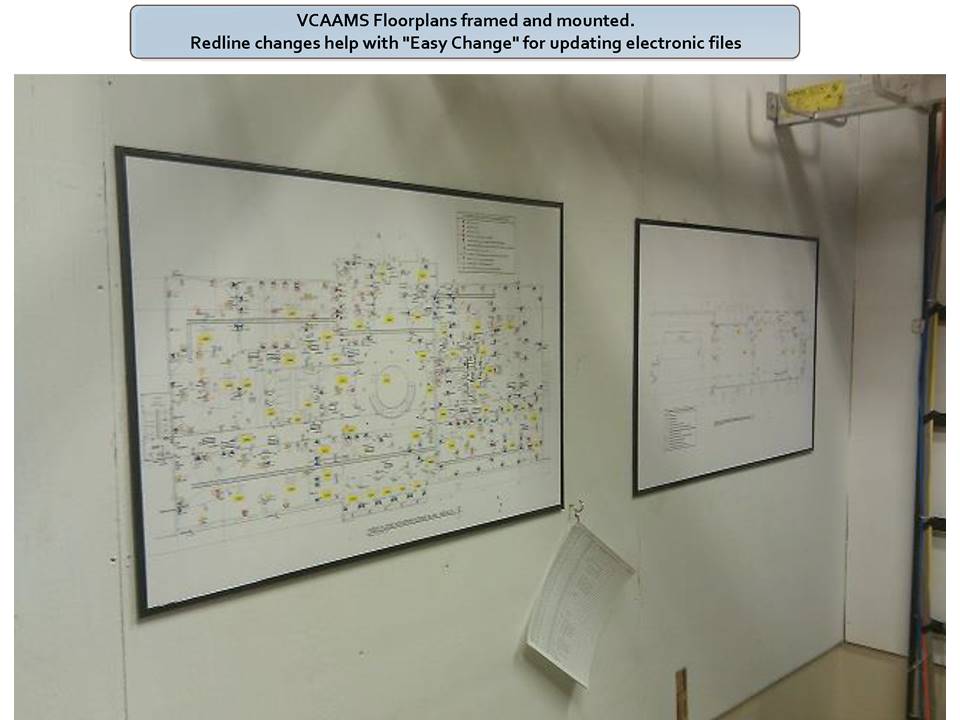

HARD COPY POSTERS MOUNTED IN TR / IDF

  • Newly created drawings mounted to assist with troubleshooting and managing moves, adds, and changes
  • Mount in TR/IDFs in order to have all contractors mark up the changes in real time.

ENHANCED = BETTER

  • Enhance the legacy and future systems infrastructure

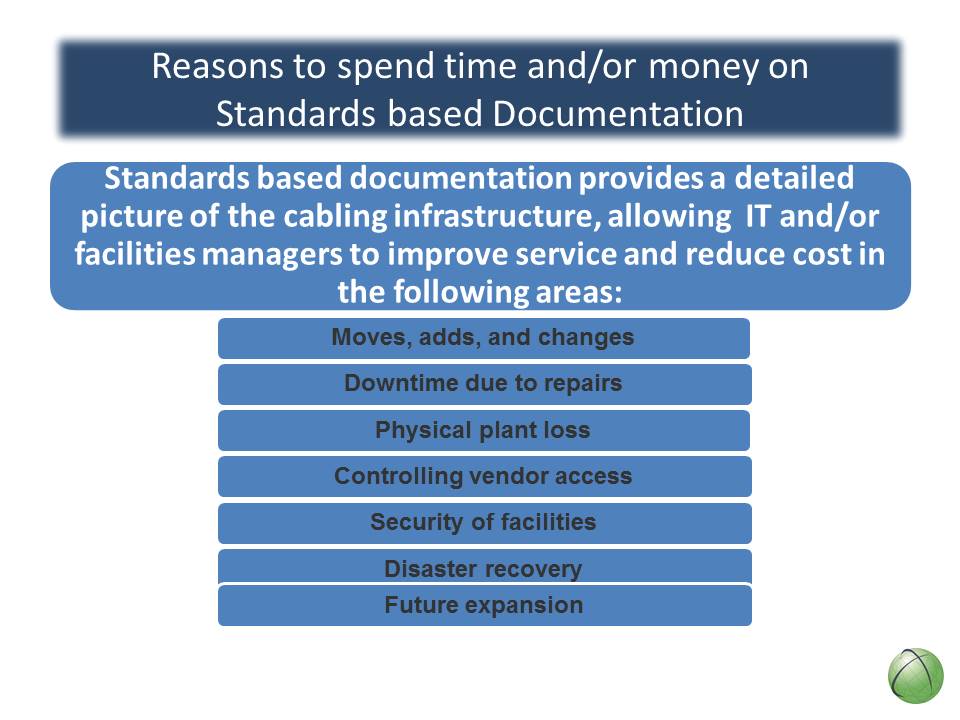

  • Create a standards based documentation system
  • Makes trouble shooting better

BUILD = EASIER

  • Build systems so documentation is provided in electronic formats
  • Electronic formats allow for easier verification and collaboration
  • makes troubleshooting easier

DESIGN = FASTER

  • Design systems with standards based tools
  • Stakeholders are best served utilizing best resources to design solutions
  • Makes troubleshooting faster

MAINTAIN = COST EFFECTIVE

  • Properly mantained legacy systems will benefit all stakeholders
  • Maintaining documentation is critical in maintaining technology systems
  • Properly maintained documentation makes troubleshooting cost effective.
